Itmes No. | BL00 |
Trademark | unik |
System | Roth/MBT |
Size | 0.022 |
Base | Mesh Base |
Certificate | CE/ISO/FDA |
Hook | 3with hook/345with hook |
Transport Package | Box/Paper/In bulk |
HS Code | 90211000 |

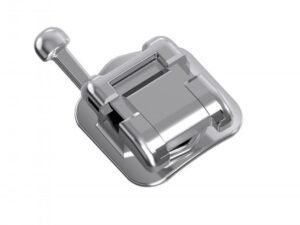

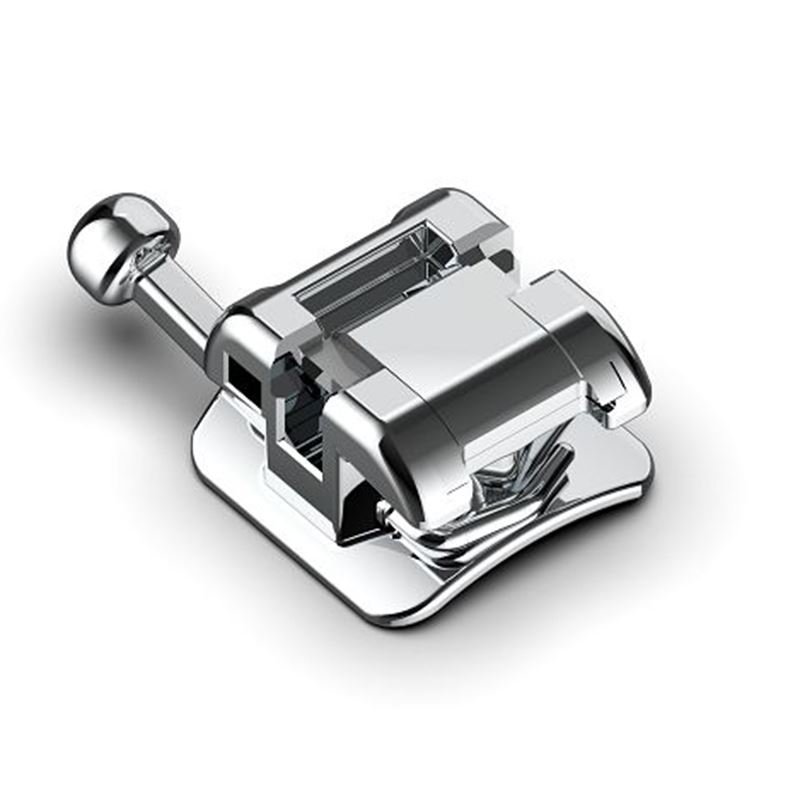

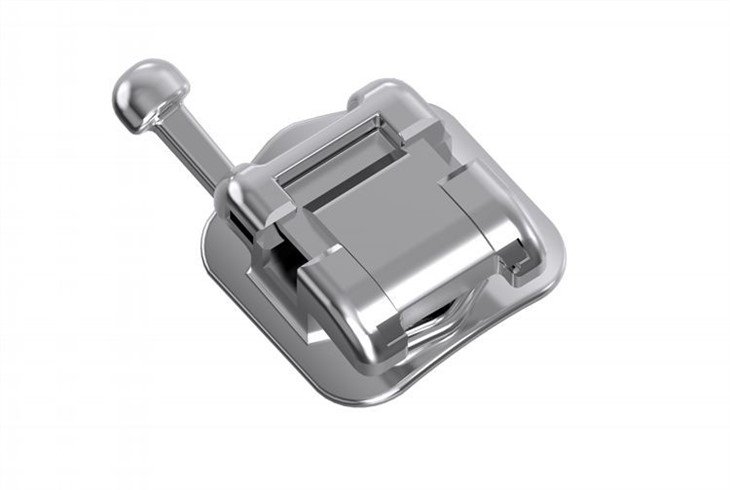

arena 6 Self Ligating Bracket is renowned for its technology and high quality. Each bracket features smooth round surfaces, low profile, and rounded tie wings. The unique designed archwire slot edges reduce friction for a more effective treatment. Orthodontic self ligating brackets will bring you better clinical management and accelerate patient’s treatment. You can purchase brackets individually, or in full sets.
Metal Self Ligating Bracket Advantages:
1.Mini Shape, adjust size and height so as to realize optimal condition.
2.Unlocking is towards the same direction: downwards.
3.The ligation space of ligation wings is ample.
4.With bottom sliding ball hook.
5.With auxiliary hole of orthodontic wires: 0.42*0.42;
6.Rectangle wires are adopted CNC machining,process, the 3 sides of bracket slots are bright and smooth, which can reduce the friction between wires and bracket slot greatly.
7.Bracket base is 80 molgbdemum mesh, and hook is ball spherical arc shape design, which can both
increase bonding strength.
8. 4 sides of bracket are adopted laser welding process, bracket base can be sandblasted and laser marked as clients requirement.
Metal Self Ligating Bracket Plus 6
Roth Upper | UR5 | UR4 | UR3 | UR2 | UR1 | UL1 | UL2 | UL3 | UL4 | UL5 |
Torque | -7° | -7° | 0° | 8° | 12° | 12° | 8° | 0° | -7° | -7° |
Ang | 0° | 0° | 8° | 8° | 4° | 4° | 8° | 8° | 0° | 0° |
In/Out | 0.9 | 0.9 | 0.9 | 1.2 | 1.0 | 1.0 | 1.2 | 0.9 | 0.9 | 0.9 |
Slod width | 2.8 | 2.8 | 3.0 | 2.8 | 3.0 | 3.0 | 2.8 | 3.0 | 2.8 | 2.8 |
Roth Lower | LR5 | LR4 | LR3 | LR2 | LR1 | LL1 | LL2 | LL3 | LL4 | LL5 |
Torque | -22° | -17° | -11° | -2° | -2° | -2° | -2° | -11° | -17° | -22° |
Ang | 0° | 0° | 3° | 0° | 0° | 0° | 0° | 3° | 0° | 0° |
In/Out | 0.9 | 0.9 | 0.9 | 1.1 | 1.1 | 1.1 | 1.1 | 0.9 | 0.9 | 0.9 |
Slod width | 2.8 | 2.8 | 3.0 | 2.6 | 2.6 | 2.6 | 2.6 | 3.0 | 2.8 | 2.8 |
Metal Self Ligating Bracket Plus 8
MBT Upper | UR5 | UR4 | UR3 | UR2 | UR1 | UL1 | UL2 | UL3 | UL4 | UL5 |
Torque | -7° | -7° | 0° | 10° | 17° | 17° | 10° | 0° | -7° | -7° |
Ang | 0° | 0° | 8° | 8° | 4° | 4° | 8° | 8° | 0° | 0° |
In/Out | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.0 | 1.2 | 0.9 | 0.9 | 0.9 |
Slod width | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
MBT Lower | LR5 | LR4 | LR3 | LR2 | LR1 | LL1 | LL2 | LL3 | LL4 | LL5 |
Torque | -17° | -12° | -6° | -6° | -6° | -6° | -6° | -6° | -12° | -17° |
Ang | 0° | 0° | 3° | 0° | 0° | 0° | 0° | 3° | 0° | 0° |
In/Out | 0.9 | 0.9 | 0.9 | 1.1 | 1.1 | 1.1 | 1.1 | 0.9 | 0.9 | 0.9 |
Slod width | 2.8 | 2.8 | 3.0 | 2.6 | 2.6 | 2.6 | 2.6 | 3.0 | 2.8 | 2.8 |
